Cobiax EL

(Eco Line)

For wider scopes with thick slabs.

AMP

Tried and tested

Cobiax EL

Robust voided modules for large savings in terms of load and materials.

The product line, Cobiax EL, was the first standardized and certified Cobiax product line.

A traditional product line.

Only available in Germany, or upon request. Follow-up product CLS available.

Technical Data.

Reduction of concrete

115 to 191 l/m2

Load reduction

286 to 477 kg/m2

CO2 reduction

0.024 to 0.04 t/m2

Void height

27 to 45 cm

Support height

27,5 to 45,7 cm

Bandwidth of slab thickness

40 to 75 cm

Definition of terms

To describe the Cobiax products unambiguously and clearly, we have agreed on a uniform set of terms. We would like to clarify these terms here in general.

1. System

When people talk about Cobiax in a practical sense, we speak of the Cobiax system or Cobiax technology. The Cobiax system or is used to build special slabs of reinforced concrete.

2. Slab

Slabs in which the Cobiax system is installed are called Cobiax voided flat slabs or simply Cobiax slabs. They consist of a void former zone on the one hand and a solid zone on the other. The installation elements are used in the void former zone.

Cobiax installation plan with blue underlaid void former zone. The solid zone is white.

3. Installation element

Installation elements refers to the objects that are actually to be built into the slab. They consist of different components depending on the product line.

The installation element of the Cobiax EL is called void former module. Its components are:

  • 5 up to 8 void formers
  • 1 fixing element made of steel (cage-shaped)

This is the installation element of the Cobiax EL with 7 void formers.

4. Component

The components of the installation elements of all product lines are called void formers.

The void former component of Cobiax EL consists of a single sphere.

The Cobiax EL sphere.

Cobiax EL has been used in the following projects:

2016

Abbey Michaelsberg

Siegburg

Learn more.
2009

Business Park TM50

Nuremberg

Learn more.
2012

Carl Zeiss Meditec AG

Oberkochen

Learn more.
2009

Centre de Musique

Luxembourg

Learn more.
2013

Chamber of Commerce and Industry

Stuttgart

Learn more.
2014

Children’s Hospital

Meerbusch

Learn more.
2010

Christian-Wirth-School

Usingen

The new cafeteria.

Learn more.
2021

Dreiländergalerie

Weil am Rhein

Impossible without Cobiax

Learn more.
2016

Elbphilharmonie

Hamburg

A cultural monument like a natural phenomenon

Learn more.
2017

ESO Supernova

Garching

Learn more.
2017

Exhibition Hall 12

Frankfurt am Main

Wider Scopes, good Contacts.

Learn more.
2008

Fair Portal House

Frankfurt am Main

Learn more.
2013

Federal Ministry of the Interior

Berlin

Eins, zwei, Polizei

Learn more.
2010

Fraunhofer Institut, ZVE

Stuttgart

Research at the highest level.

Learn more.
2014

HSNR Campus Krefeld South

Krefeld

An extension on the Lower Rhine

Learn more.
2018

Humboldt-Harbor

Berlin

Learn more.
2014

Humboldtforum

Berlin

Grounds for intense debate. Technically superb.

Learn more.
2012

KÖ-Bogen

Düsseldorf

An icon, from the very beginning.

Learn more.
2015

Main building Vector Informatics

Stuttgart

Learn more.
2022

Museum Reinhard Ernst

Wiesbaden

A museum for abstract art is being built in a central downtown location.

Learn more.
2008

MyZeil

Frankfurt am Main

Learn more.
2007

Office building (Oberkirch)

Oberkirch

Learn more.
2014

Office building on Lilienthal Boulevard

Opfikon

New construction in the Minergie standard (minimal energy consumption)

Learn more.
2009

Office Park Ratingen

Ratingen

Diversity in a functional form.

Learn more.
2015

Open workshop

Hannover

Learn more.
2018

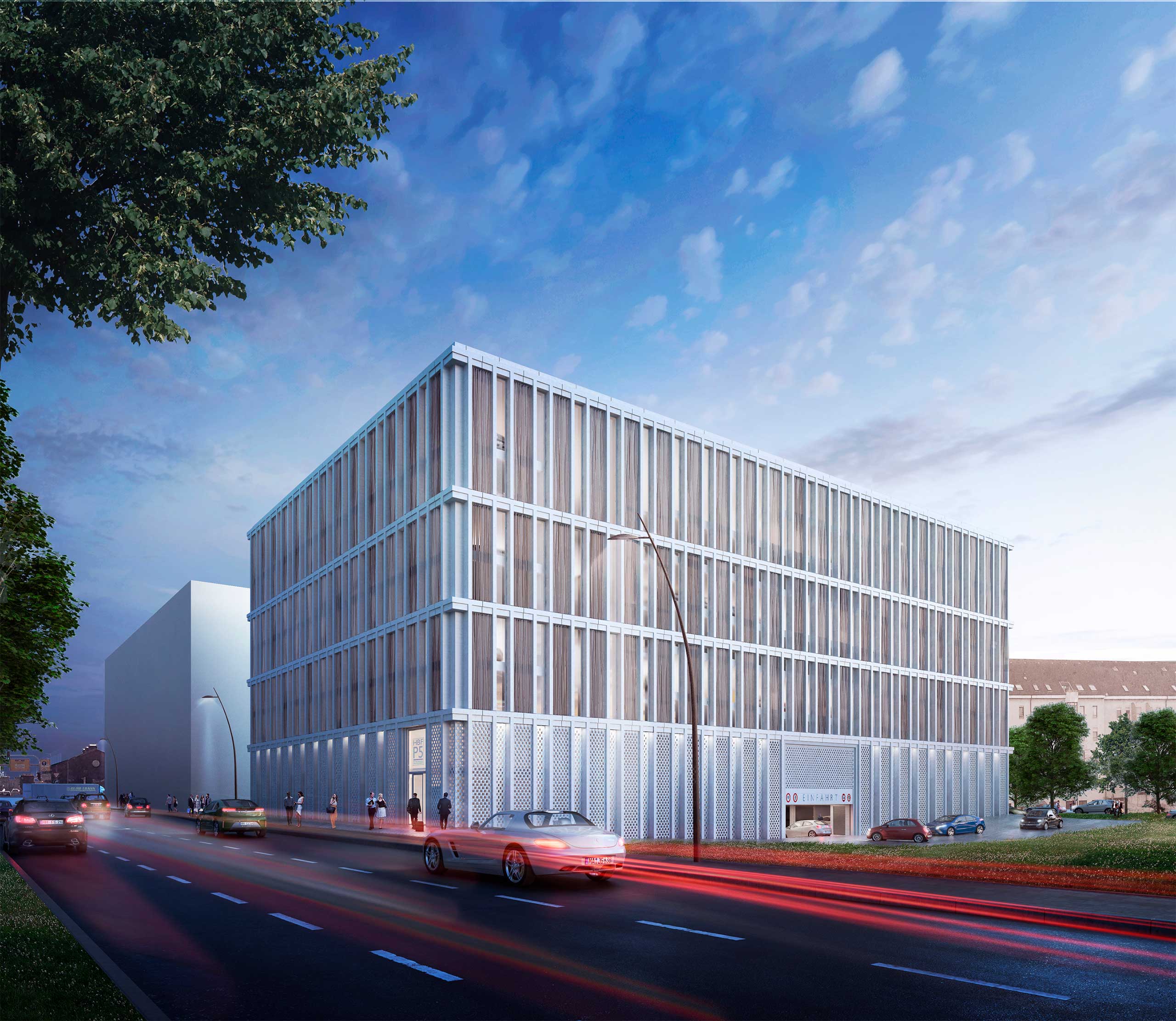

Parking garage Glücksteinquartier

Mannheim

Lots of space for cars - thanks to Cobiax.

Learn more.
2011

Perez Art Museum

Miami

Learn more.
2011

SE-Zentrum II

Neckarsulm

Learn more.
2005

SEW (in Bruchsal)

Bruchsal

Learn more.
2008

St. Jakob Tower

Basel

Learn more.
2012

Technical Center

Dresden

Learning in a sophisticated atmosphere: A special technical centre for research by the Faculty of Electrical Engineering and Information Technology at Dresden Technical University.

Learn more.
2009

The Squaire

Frankfurt am Main

A Characteristic for Airport City Frankfurt.

Learn more.
2013

Underground parking of the university hospital

Mannheim

Learn more.
2013

University library

Freiburg

Learn more.
2014

University of Iowa

Iowa City

Art Building

Learn more.
2011

Vodafone Campus

Düsseldorf

A new home for 5,000 employees

Learn more.
2018

Work Life Center, Mittelbau

Hamburg

From the outside, 1887. From the inside, the present.

Learn more.
2022

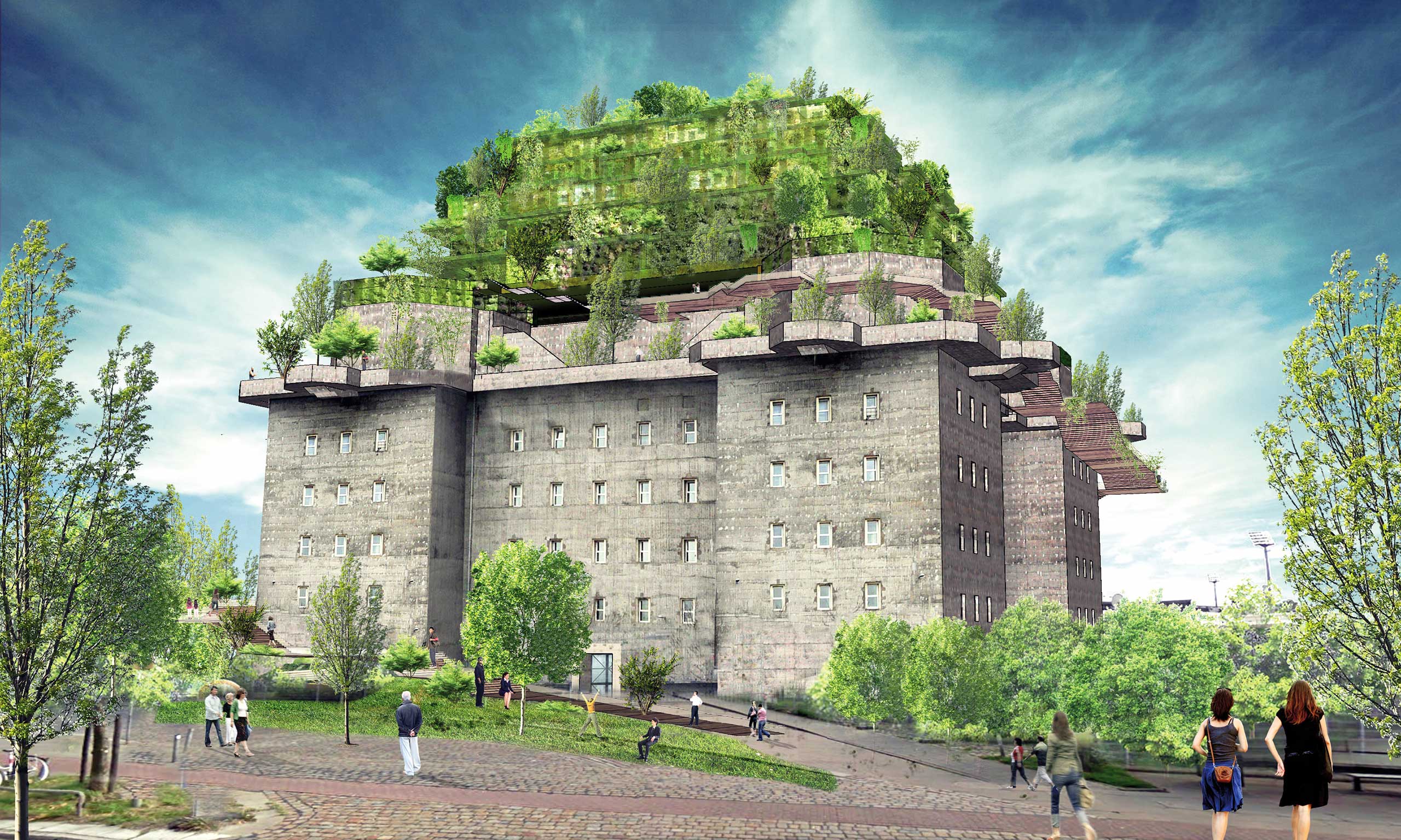

Urban garden Hamburg

Hamburg

Sustainable urban development with Cobiax: A former shelter is everything in one: war memorial, place of creativity and event location. And now also an urban garden.

Learn more.
2008

Oberrhein Hall

Offenburg

Learn more.
2020

Boehringer administration building

Ingelheim on the Rhine

Modern, highly automated office building with 6 floors.

Learn more.
2021

WIKA Development Center

Klingenberg

The building, constructed with Cobiax technology, creates great openness and transparency between the respective work areas.

Learn more.
